QGG Series Milling Vises
QGG series milling vises are used in the surface grinding machine, milling machine, EDM machine, and wear-cut machine, etc. QGG series milling vise can complete the processing of angle plane, groove, and plane inclined hole. Which can be used for the measurement of various angle parts. QGG series milling vise can keep high precision in horizontal, vertical, and horizontal operations.

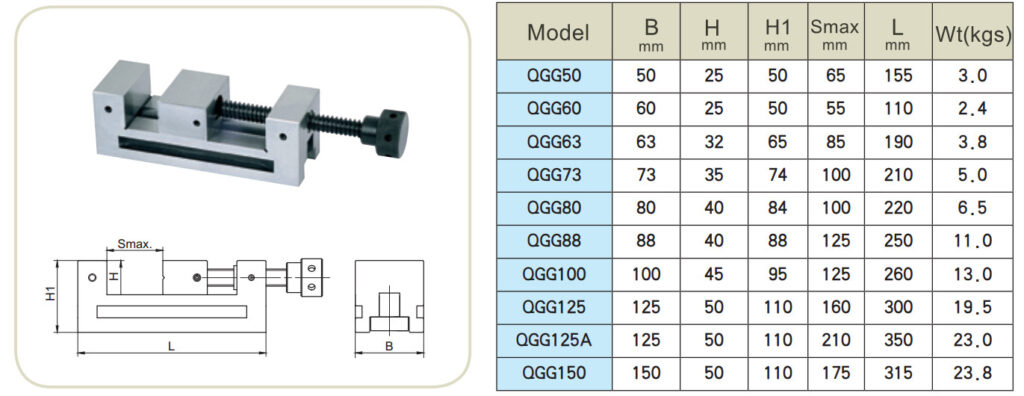

| Model | QGG100, QGG125, QGG125A, QGG150, QGG50, QGG63, QGG73, QGG80, QGG88 |
|---|---|
| Material | 20CrMnTi, 40CrMnTi |
| Accuracy | 0.004~0.008 |
| Parallelism | 0.005mm/100mm |
| Squareness | 0.005mm |
| Hardness | HRC58–62 |
| Application | CNC Machine Center |
| Packaging | Paper box, Wooden box |

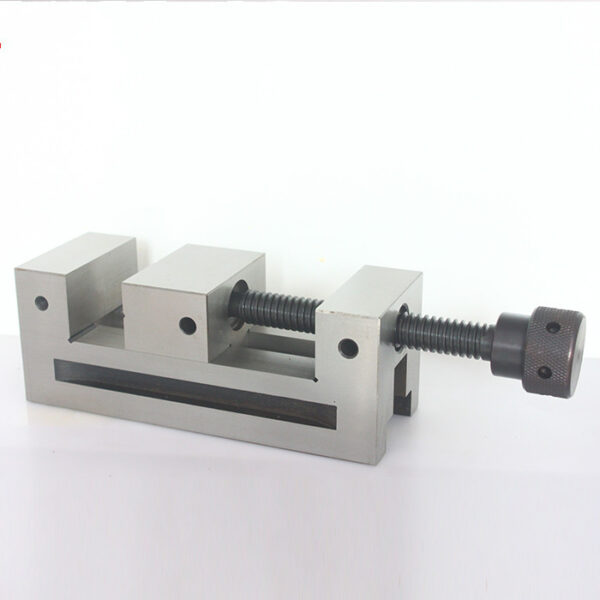

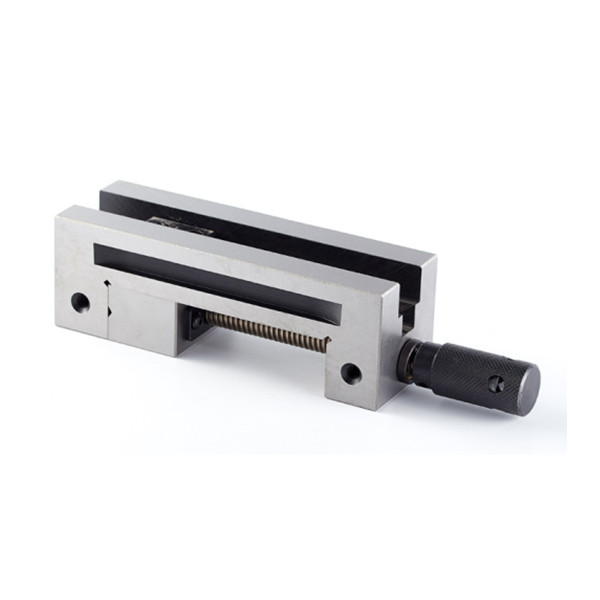

Product Details
- Made of high-quality alloy steel.
- The hardness of the working surface reaches HRC58~62.
- Parallelism 0.005mm/100mm squareness 0.005mm.
- Quickly to clamp and easy to operate.
- Used for precision measurement and inspection precision grinding, EDM machine, and Wire-cutting machine.
- Guarantee high accuracy in any position.
